Automatic Cartoning Machine with Hot Melt Adhesive – Fully Automatic Cartoner, One Operator, Box Size 100–320mm

Model Number : LK-BC3115

Adhesive Type : Hot Melt Adhesive

Box Size : 100–320mm

Certification : CE, SGS, ISO9001, and ISO14001

Operation Mode : Fully Automatic Cartoner

Brand Name : LIKEE

Product Name : Automatic Cartoning Machine

Place of Origin : Shanghahi, China

Operator Required : One Operator

Contact Now

Automatic Cartoning Machine with Hot Melt Adhesive – Fully Automatic Cartoner, One Operator, Box Size 100–320mm
Product Overview

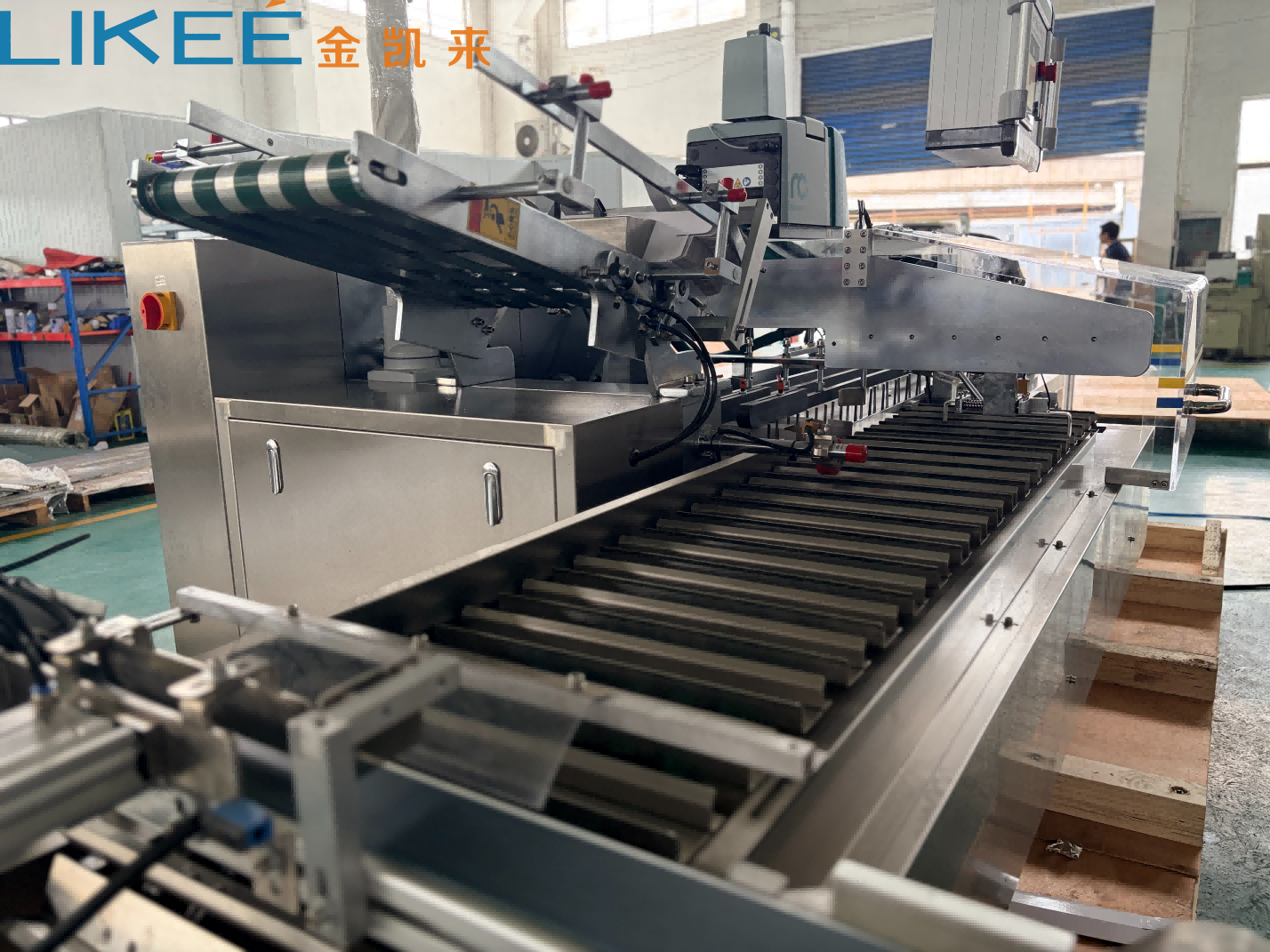

This automatic cartoning machine uses hot melt adhesive for secure carton sealing and runs as a fully automatic cartoner. It is built for continuous box packaging with one operator managing the full process. The machine handles carton sizes from 100 to 320mm in length, covering a wide range of box formats. Suitable for wet wipes, aluminum foil, cling film, and similar products that require clean, fast carton closure.

Features & Advantages
  • Hot Melt Adhesive Sealing: Provides strong, clean carton closure. The glue dries quickly, keeping production moving without delay.
  • Fully Automatic Operation: Carton erection, product loading, and sealing run in one continuous cycle. Minimal manual handling required.
  • One Operator Required: Designed so a single person can monitor and manage the machine. Reduces labor costs on the packaging line.
  • Wide Box Size Range: Supports carton lengths from 100-320mm, widths 100-190mm, and heights 30-100mm. One machine covers multiple product lines.
Technical Specifications
Item Specification
Adhesive Type Hot Melt Adhesive
Operation Mode Fully Automatic
Operator Required One
Box Size (L) 100-320mm
Box Size (W) 100-190mm
Box Size (H) 30-100mm
Working Speed 10-50 boxes/min
Control System PLC + Servo
Air Pressure 0.5-0.8 Mpa
Power Servo Motor: 1.5KW / Heating: 3.5KW
Machine Dimensions 4000 × 1600 × 1700 mm
Weight 1500 KG
Electrical Requirement 380V, 50HZ, 3Phase
Frequently Asked Questions
Q1: What adhesive does this machine use for sealing?
A: It uses hot melt adhesive, which provides a strong bond and fast drying time.
Q2: Does this machine require more than one operator?
A: No. One operator is enough to run the machine from feeding to sealed carton output.
Q3: What box sizes can this cartoner handle?
A: Carton length 100-320mm, width 100-190mm, height 30-100mm.
Q4: Is this machine fully automatic?
A: Yes. It completes carton opening, product insertion, and sealing automatically in one cycle.
Q5: What products is this machine suitable for?
A: Wet wipes, aluminum foil, cling film, plastic bags, and similar boxed consumables.
Q6: What is the production speed?
A: 10-50 boxes per minute, depending on carton size and product type.
Q7: What power supply is needed?
A: 380V, 50HZ, 3-phase power with 0.5-0.8 Mpa air pressure.
