The LK-T80 features a solid tabletop punch structure, which serves as the foundation for the machine's long-term stable operation. The worktable surface is machined from a single piece of steel, without splicing or welding. This structure better withstands the forces generated during long-term stamping operations.
The solid tabletop maintains excellent flatness during operation, providing a stable support surface for mold installation. During continuous production, the tabletop is less prone to deformation, which helps maintain mold closing accuracy. This design provides practical benefits for production requirements that demand consistent product dimensions.
The machine employs an H-frame body structure, where the solid worktable works in coordination with the body frame to effectively distribute the stresses generated during the stamping process. This structural design considers the machine's stability during long-term use, reducing potential issues caused by structural deformation.
The mold installation positions on the worktable are precisely machined, with mounting holes arranged in a regular pattern. During mold changes, operators can accurately position molds in predetermined locations, simplifying the installation and debugging process.
The solid tabletop structure also facilitates equipment maintenance. The sturdy tabletop resists wear, and its surface machining quality can be maintained over time. This design reflects considerations for the machine's reliability in its fundamental structure.
Features:
-
Worktable features solid structure design
-
Provides stable mold installation base
-
Helps maintain production precision
-
Structurally robust and durable
-
Facilitates mold installation and positioning
Technical Specification:
|
Press Capacity
|
80ton
|
|
Inatalled Power
|
26KW
|
|
PLC
|
Mitsubishi
|
|
Main Motors
|
Innomotics
|
|
Low-voltage Components
|
Schneider
|
|
Core Feature
|
Supporting Moulds Support Customization |
| Mould Customization Scope |
Logo, knurling,etc |
|
Applicable Raw Material
|
3003 H24 |
| Machine working service |
10years |
| Machine Working ability |
24hours |
|
Working Speed
|
From 35-70 strokes/min
|
|
Output
|
12000pcs/hour |
|
Ram Adjustment
|
80mm
|
| Total Weight |
14500KG |
Applications:
It accepts orders of 1 unit minimum, priced $45,000-$75,000. Packed in strong wooden crates and iron casings, it’s shipped safely worldwide without damage.
Off-the-shelf models arrive in 30 days, customized ones as agreed. Flexible payment (T/T, L/C) and 50 units/year production capacity for quick order handling enhance its dependability.

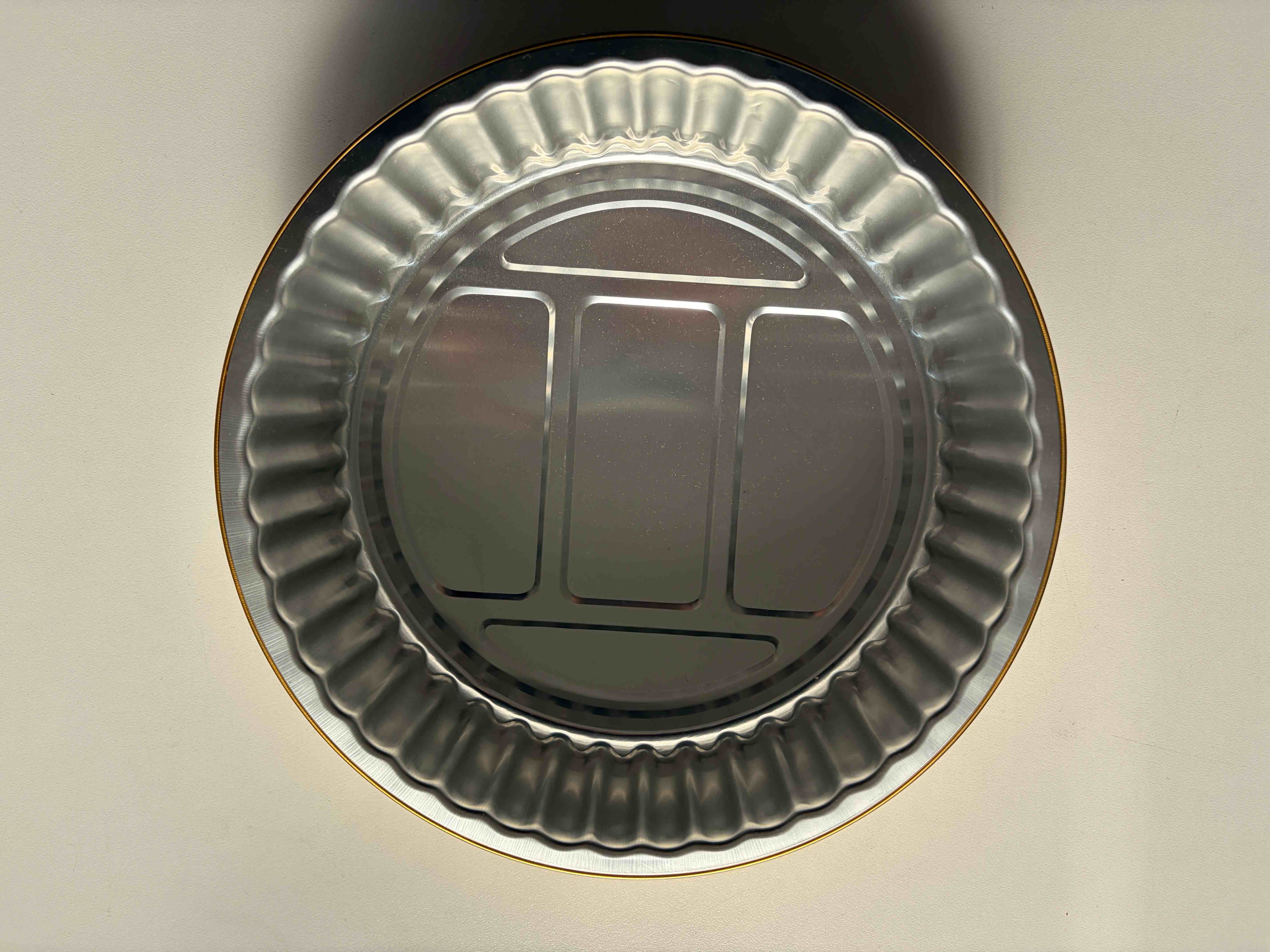

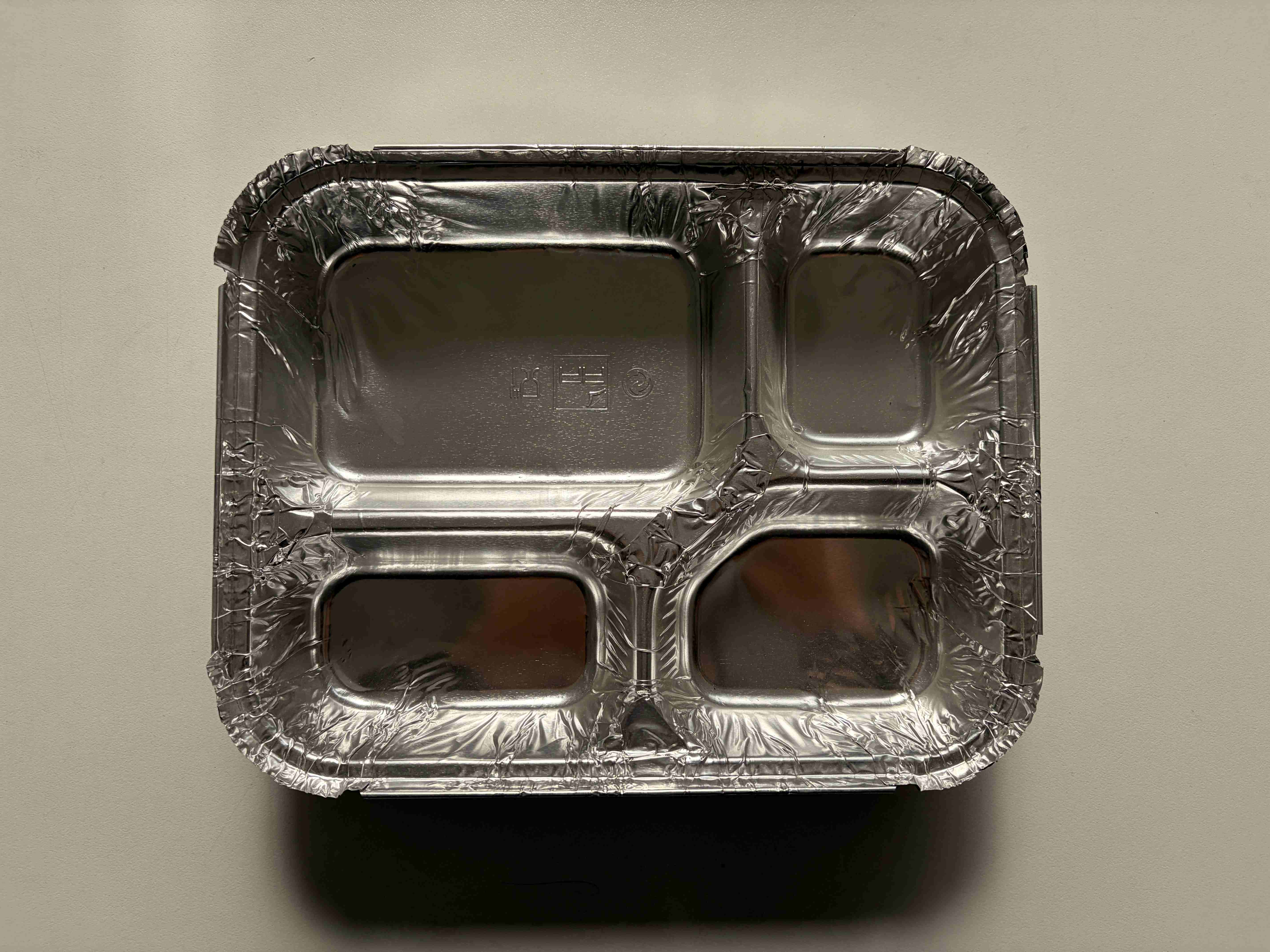

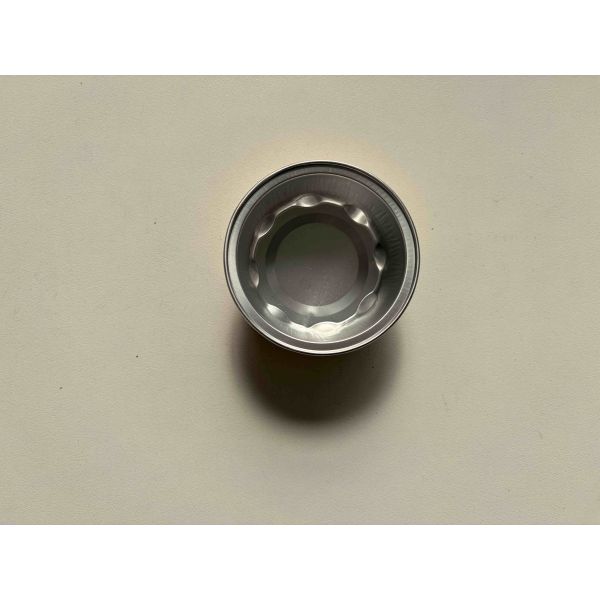

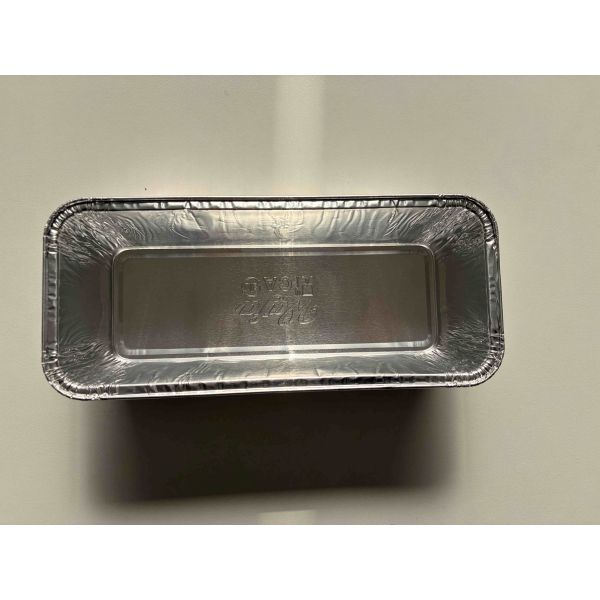

Sample Display:

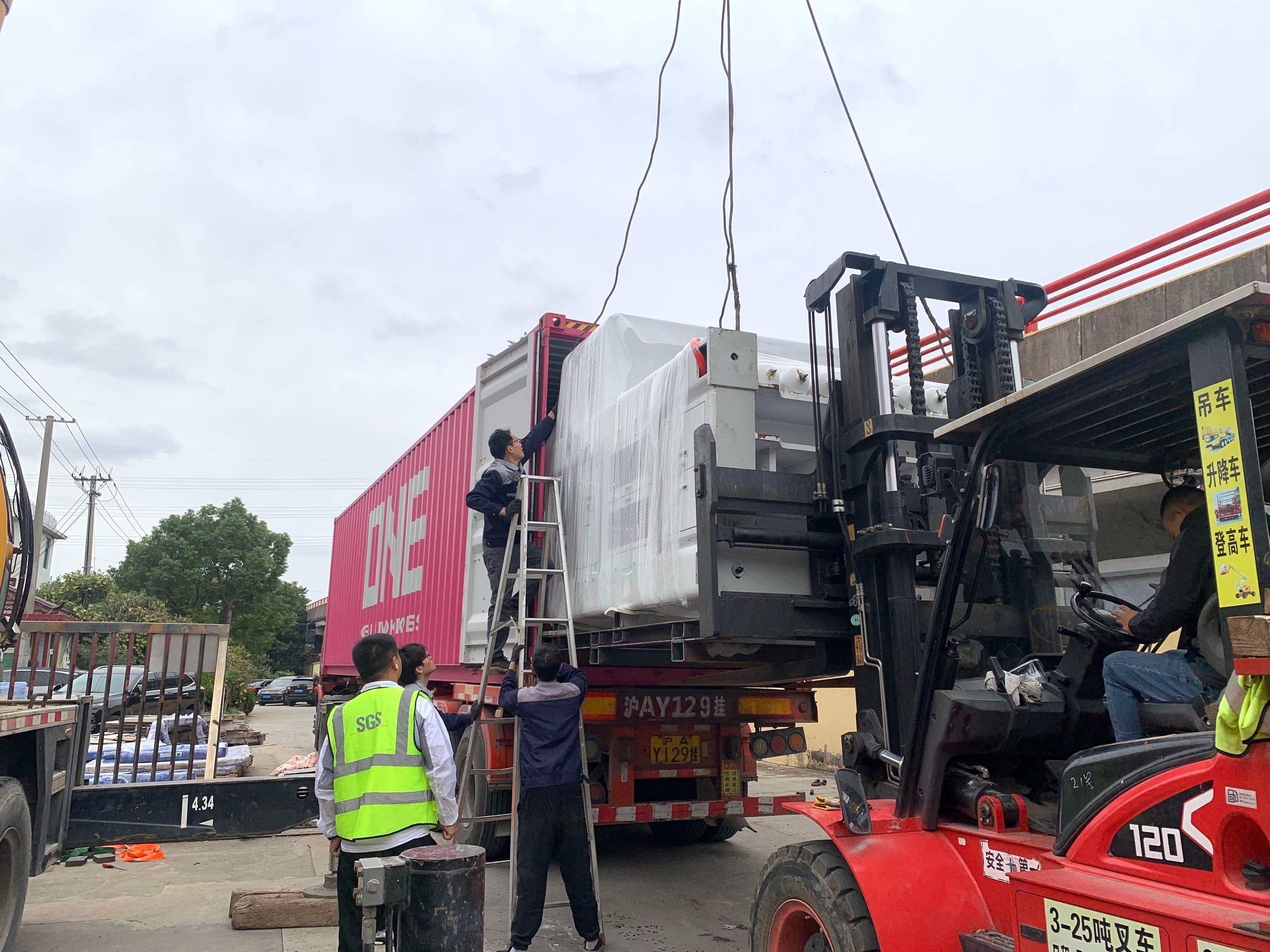

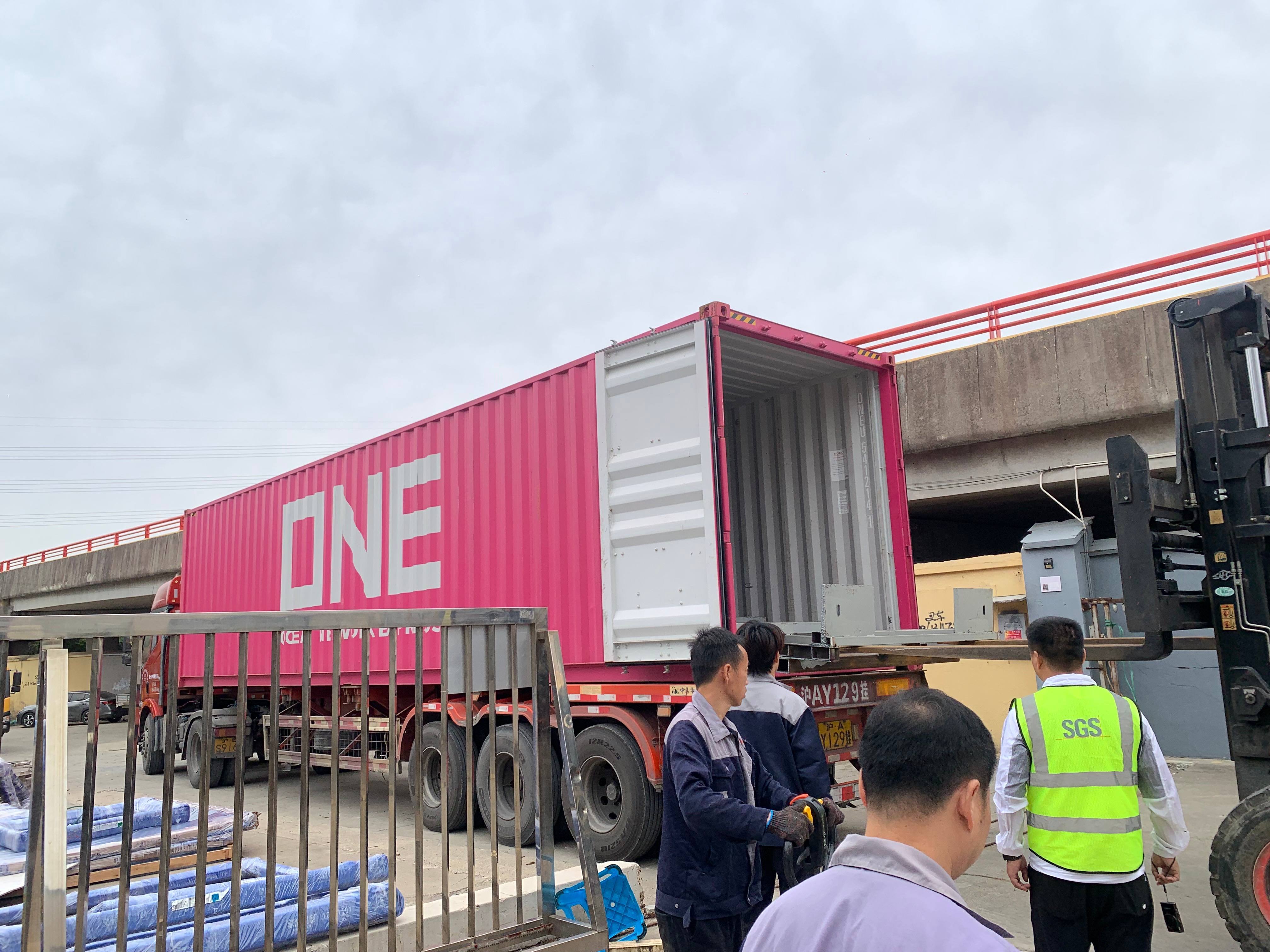

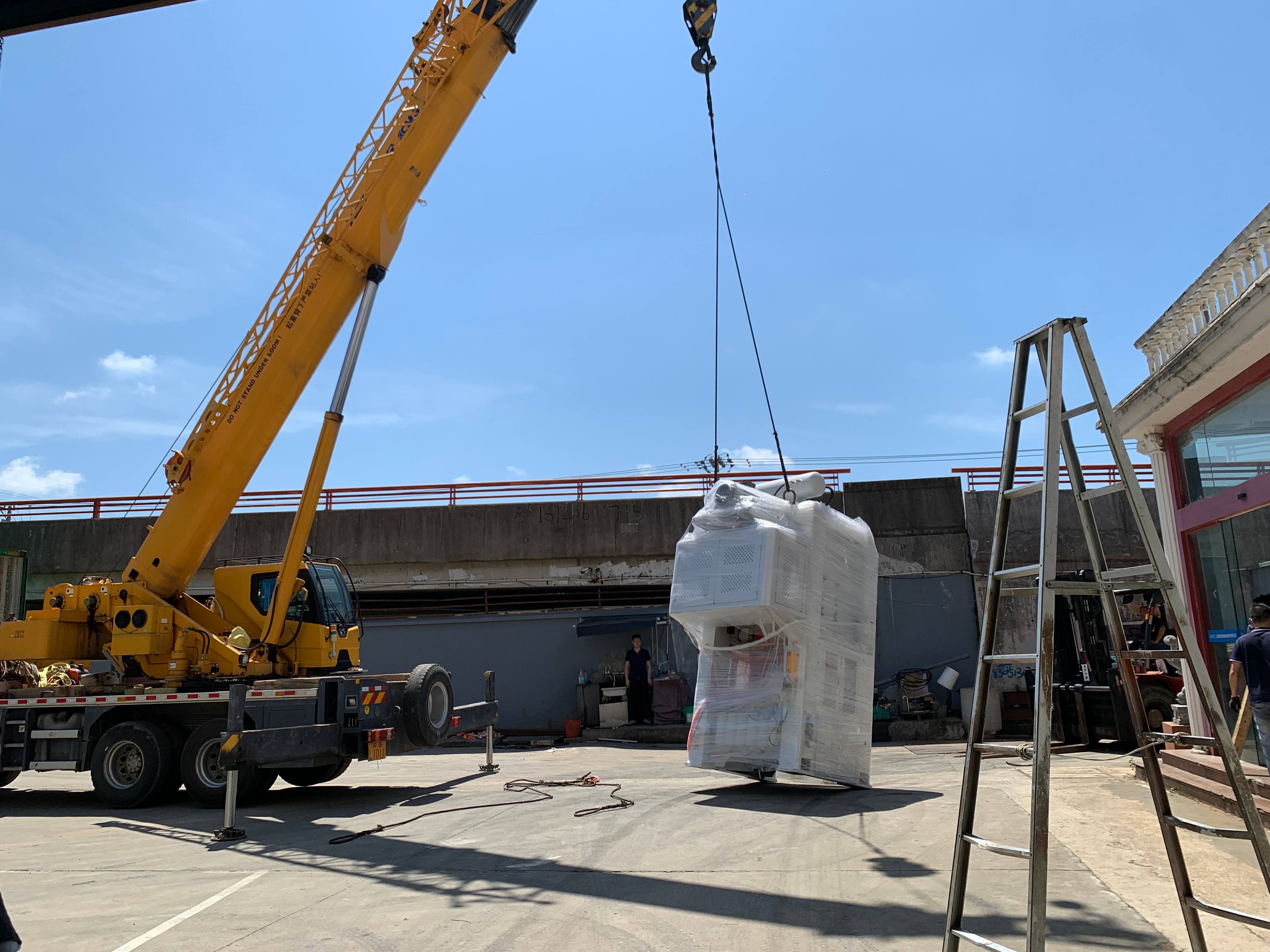

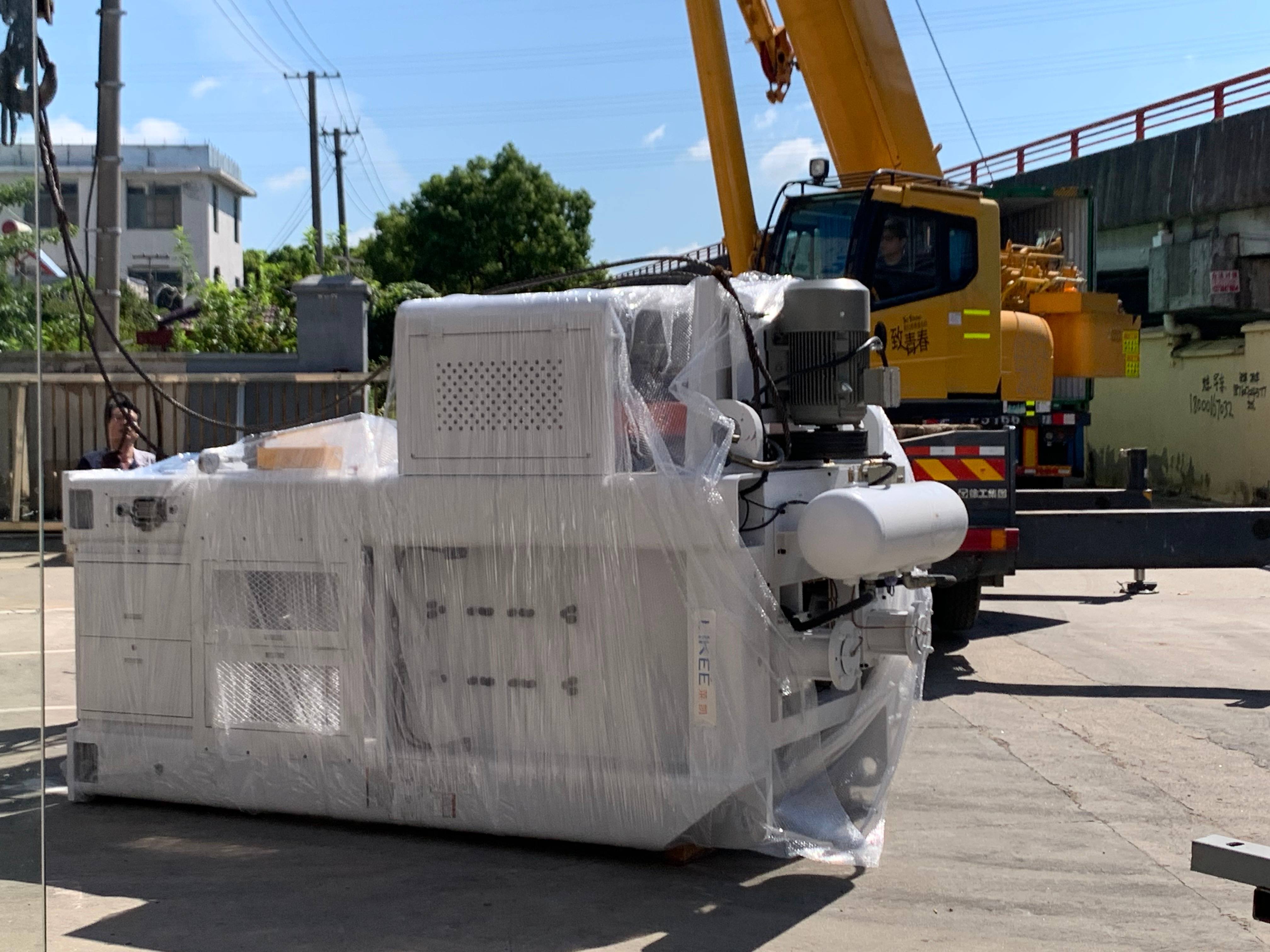

Aluminum Foil Container Making Machine Shipping:
Certification:
Exhibition Participation:
FAQ:
Q: What are the advantages of a solid worktable?
A: The solid structure provides more stable support, reduces deformation during long-term use, and helps maintain production precision.
Q: How does this structure assist with mold installation?
A: The flat and stable tabletop facilitates accurate mold positioning, simplifies the installation process, and improves installation efficiency.
Q: Is the solid tabletop more durable?
A: Yes, the integral structure is typically more wear-resistant than spliced structures and has a longer service life.
Q: How is the tabletop maintained?
A: Keep it clean, avoid impact from hard objects, and regularly check for flatness.
Q: Does this design affect the machine's weight?
A: The solid structure adds some weight, but this helps improve the machine's stability during operation.
Q: How long will spare parts be available?
A: We commit to at least 10 years of spare parts supply, ensuring maintance support throughout the equipment's lifecycle.
