High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output

Brand Name : LIKEE

Model Number : LK-T63

Productname : Aluminium Foil Container Making Machine

Ton : LK-T63

Powersupply : 220V/380V, 50Hz/60Hz

Output : 9000pcs/hour

Air Compressor : Not less than 0.8Mpa 11KW

Feeder Level Adjustable : Electric

Voltage : 220V,360V

Feature : Fully Automatic

Ram Adrjustment : 80mm

Operator : One Operator

Contact Now

High Speed 35-70 Strokes/Min China Machine for Aluminum Foil Container Tray and Pan
Product Overview

The LK-T63 operates at 35-68 strokes per minute with 3 cavities, delivering an output of 9,000-12,000 pieces per hour. This machine is specifically designed for small to medium aluminum foil containers and trays.

Features include a C-frame construction with solid bed plate, weighing 13,500 KG. Safety door automatically stops the machine when opened, and the mold lifter arm enables quick mold changes by a single operator.

Premium Components
  • Mitsubishi PLC control system
  • Yimengda motor
  • Schneider electrical components
  • SMC and Airtac pneumatic systems
Mold Customization Options
  • Wrinkle wall or smooth wall designs per sample
  • Edge rolling: full, folded, or reverse options
  • Cavity configurations from single to multi-cavity
Key Advantages
  • Fully automatic operation with single operator
  • 15 years of export experience
  • Core press life exceeding 30 years
  • Compatible with both thin and thick foil
  • Low defect rate of 1/1000
  • Fault display on touch screen interface
  • Stores parameters for 60 sets of molds
Technical Specifications
Press Capacity 63 ton
Installed Power 19.8 KW
Stroke 240mm fixed
Main Motor Innomotics
Low Voltage Electrical Schneider
Foil Feeding Electronically controlled with servo motor
Container Samples
High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output

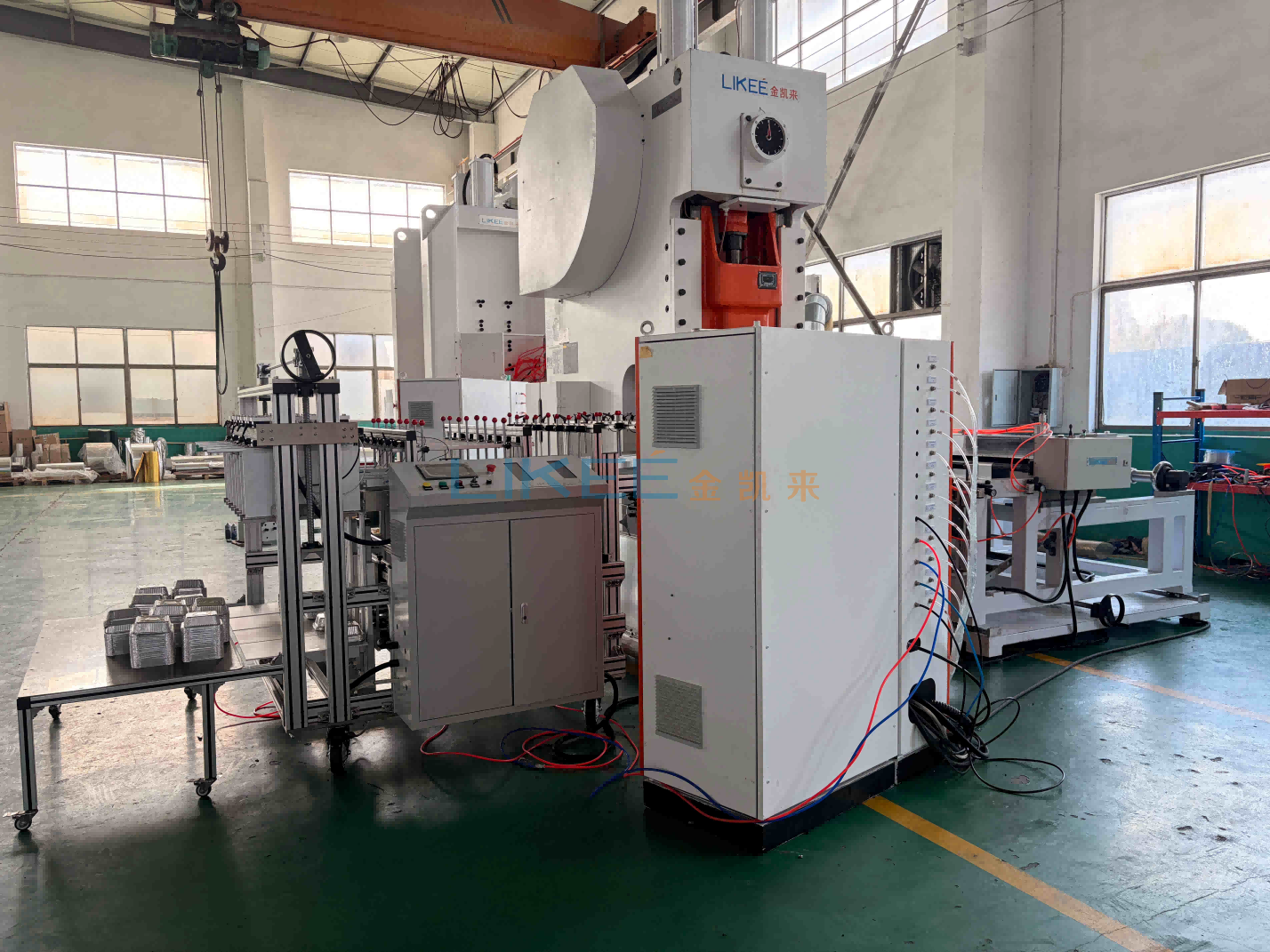

Machine Details
High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output

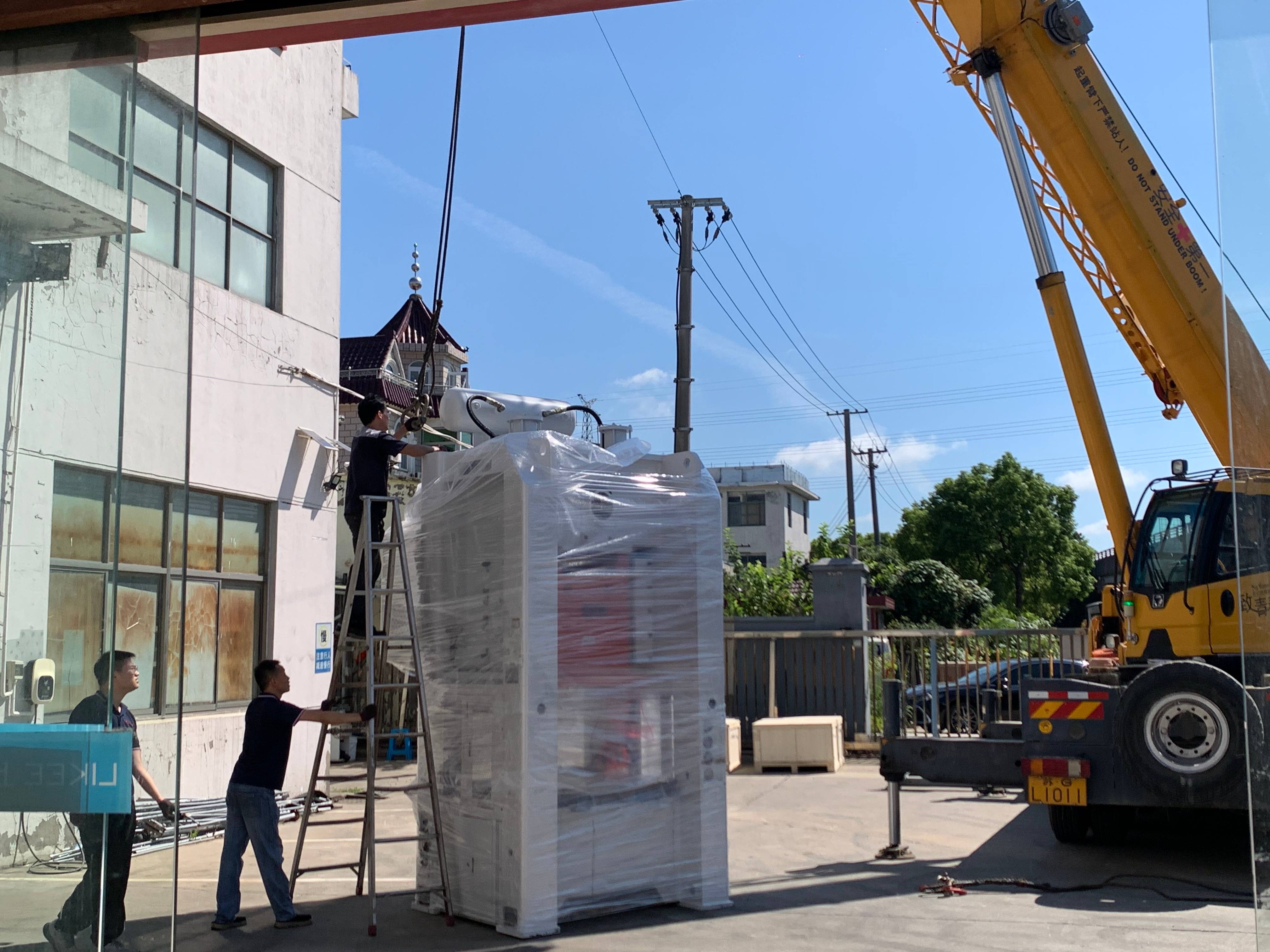

Machine Shipping
High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output High Speed 35-70 Strokes/Min Fully Automatic Aluminum Foil Container Making Machine with 9000pcs/Hour Output
Frequently Asked Questions
Q: Is 35-68 strokes/min actual running speed?
A: Yes. Average 50 strokes delivers 9,000-12,000 pieces per hour.
Q: Can you make wrinkle free molds?
A: Yes. Both wrinkle wall and smooth wall available per sample.
Q: What edge rolling options?
A: Full edge rolling, folded edge rolling, reverse edge rolling.
Q: Can cavity count be customized?
A: Yes. From single cavity to multi-cavity based on output needs.
Q: How long for mold change?
A: One operator with mold lifter arm. Quick and easy.
Q: Warranty policy?
A: 1 year warranty. Lifetime technical support.
Machine Operation Video
